Understanding the NKIA 5902 Metric Series and Ball Screw Support Bearings
The growing demand for compact, high-load support in automation and precision machinery is pushing many engineers to look for a reliable China NKIA 5902 metric series bearing supplier. In this context, combined double-direction axial cylindrical roller and radial needle roller bearings, such as the ZARN series and NKIA series, are becoming a core solution for ball screw support and space-constrained transmission layouts.
Changzhou Taiyada bearing Co.,Ltd, often referred to as Taiyada bearing, specializes in needle roller and combination bearings that align well with this trend. While the company is widely known for needle roller bearings, automotive water pump bearings, and track roller bearings, its engineering capabilities and P4 axial precision know-how naturally extend to ball screw support bearings and NKIA-type combined designs. This combination of axial cylindrical roller and radial needle roller elements enables both high axial stiffness and strong radial support within a compact metric envelope.
In modern CNC and industrial automation systems, the role of ball screw support bearings is no longer limited to simple radial support. Machine builders expect P4 axial precision, high dynamic load ratings, and long service life under fluctuating loads. A China NKIA 5902 metric series bearing supplier that can handle both standard catalog sizes and customized variants—such as ZARN axial/radial bearings or NKIA 5902/5903/5904 combined structures—provides a practical path to harmonizing stiffness, noise, and cost control.
Key Features of ZARN Series and NKIA Combined Bearings

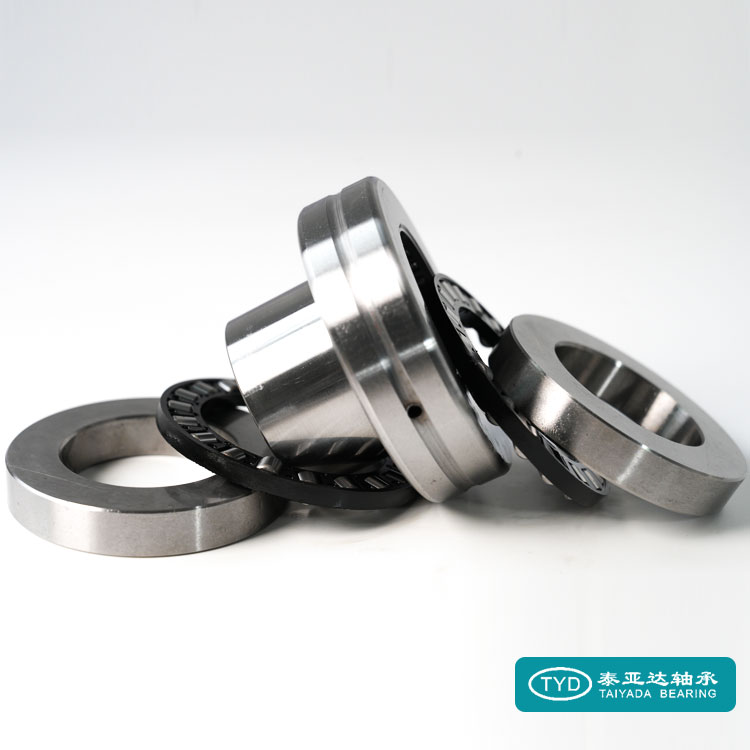

The ZARN series, defined as a combination double direction axial cylindrical roller and radial needle roller bearing, is tailored for applications where ball screw support must meet tight axial positioning tolerance and high thrust loads. With metric series dimensions and P4 axial precision, ZARN bearings are suited to demanding ball screw and feed axis designs in machining centers, packaging machinery, and precision handling equipment.

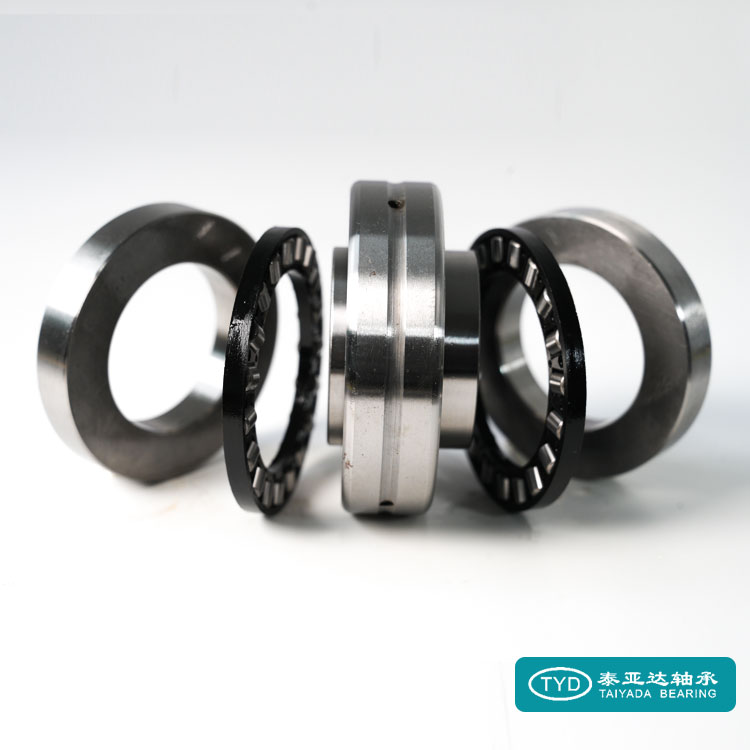

In parallel, NKIA 5902, NKIA5903, and NKIA5904 combined bearings provide an alternative layout: one direction of axial load with integrated radial needle rollers in a compact design. A capable NKIA5903 NKIA5904 combined bearing factory does not treat these as simple catalog parts; it adjusts the roller length-to-diameter ratio, cage structure, and raceway curvature to match actual working conditions such as high-frequency reversing or intermittent shock loading. Taiyada bearing’s existing experience with NA, RNA, NK, NKI, NKIA, NKIB, NKX, and NKXR series needle bearings forms the technical foundation for fine-tuning these combined designs.
Compared with conventional deep groove ball bearings used for ball screw supports, ZARN and NKIA-type combination bearings offer a different balance of performance: higher axial stiffness due to cylindrical rollers, better radial load sharing through needle rollers, and improved space utilization. For designers working with metric series layouts, collaboration with an experienced China NKIA 5902 metric series bearing supplier allows optimization of bearing selection, preload strategy, and fit tolerances for both the housing and shaft journal.
Metric Series and P4 Axial Precision
Metric standardization simplifies interchangeability, but the real differentiator lies in axial precision. P4 axial precision in ZARN-type bearings enables consistent axial positioning of ball screws, which directly impacts repeatability and surface finish in machine tools. Taiyada bearing’s established inspection hardware—such as universal length measuring instruments and Rockwell hardness testers—supports this level of precision by ensuring that both raceways and rolling elements meet tight dimensional and form tolerances.
Hybrid Concepts and High-Speed Adaptation
Taiyada bearing has already extended its water pump bearing technology to high-speed DTY textile machinery, where upgraded hybrid ceramic balls and aerospace-grade grease allow speeds of 15,000–25,000 rpm. This high-speed know-how is transferable to ZARN and NKIA-type ball screw support bearings when customers need higher linear speeds or shorter cycle times. While the ZARN series is traditionally axial-precision focused, customized versions can integrate improved cage designs, optimized lubrication channels, or heat-treatment modifications to enhance life under fast reversing loads.
Integration with Needle Roller Bearing Expertise
The internal architecture of NKIA 5902 and related combined bearings relies on the same fundamentals as Taiyada bearing’s standard needle roller series: slender rollers, ringless configurations, and high radial load capacity in minimal radial cross-sections. Using the shaft journal or housing bore as a raceway is common in their NA, NK, and NKX lines, which provides a practical knowledge base for designing compact axial-radial combinations with consistent performance. This synergy reduces development risk when customers request special NKIA structures tailored to specific ball screw diameters or feed-system layouts.
Industry Pain Points: From Fit Tolerances to Basic Load Ratings
Many issues reported by users of ball screw support bearings and combined axial-radial bearings are not caused by catalog design alone. Instead, they originate from fit tolerance deviations, geometrical errors, and miscalculations of the basic dynamic load rating (C-value). A China NKIA 5902 metric series bearing supplier must address these pain points systematically rather than treating them as isolated failures.
Installation difficulty and misalignment are among the most frequent complaints. Excessive interference fits or out-of-tolerance cylindricity and coaxiality of the housing can distort the bearing’s internal geometry. In axial/radial combination bearings like ZARN or NKIA 5902, such distortions may reduce internal operating clearance to near zero, leading to immediate seizure during start-up. Taiyada bearing emphasizes proper ISO/GB/T fit class selection and offers practical guidance to ensure that customers maintain correct coaxiality and perpendicularity between housing bores and shafts.
Premature fatigue spalling and cage fracture often stem from underestimating the actual working loads. When engineers design around a bearing with a C-value that is too low, the rolling elements and cage in axial cylindrical roller stages may experience stress levels beyond their intended capacity. In the case of NKIA5903 NKIA5904 combined bearing factory supply, the absence of proper verification under real belt tension or screw preload can cause early structural collapse. Taiyada bearing’s experience includes recalculating load ratings, adjusting roller counts, and re-optimizing raceway curvature to align with real-world duty cycles.
Noise and Vibration in Precision Axes
Excessive rotational noise or chattering in ball screw support points is another critical pain point. Rough or wavy raceway surfaces, inadequate lubrication, and mismatched ball/roller-to-groove curvature can all amplify vibration. Taiyada bearing uses high-precision grinding and surface finishing to control waviness, while their QC team monitors Ra values to ensure adequate oil film formation. For ZARN and NKIA series bearings, proper selection of grease with stable oil film strength is essential, especially when the bearings are preloaded for axial stiffness.
Assembly Seizure and Thermal Effects
Assembly seizure, particularly in high-temperature environments such as engine water pumps or machine tool enclosures, is often linked to insufficient internal clearance combined with thermal expansion. When axial cylindrical rollers and radial needle elements are compressed by excessive interference fits, additional thermal growth can eliminate residual clearance, causing locking. Taiyada bearing mitigates this risk by aligning heat treatment, dimensional tolerances, and internal clearance design with actual operating temperatures and mounting conditions.
Supply Chain and Policy-Driven Constraints
Beyond pure engineering issues, buyers face policy and supply chain constraints. Automotive and industrial customers must comply with quality frameworks like IATF 16949 and ISO 9001, while also meeting local regulatory requirements. A China NKIA 5902 metric series bearing supplier that holds IATF 16949 certification and operates under ISO 9001 can streamline supplier approval processes. Taiyada bearing’s 20-year heritage and recognition as a Provincial Quality Trustworthy Enterprise provide added assurance that supply stability and traceability requirements are addressed.
Case Study: From Water Pump Collapse to Reliable Combined Bearings
A revealing example of Taiyada bearing’s engineering approach comes from an automotive water pump project, which shares many structural analogies with combined axial/radial bearings like ZARN and NKIA 5902. A vehicle components manufacturer commissioned a custom water pump bearing based on its own drawings. During field tests, the bearings experienced severe structural collapse—cage fracture and rolling element dislodgement—under actual belt tension conditions.
Detailed reverse engineering revealed that the original design’s basic dynamic load rating (C-value) was insufficient. The rolling element count, diameter, and raceway curvature were all optimized for a lower load scenario. By re-evaluating the load spectrum and benchmarking a proven design, Taiyada bearing’s engineers identified the structural mismatch and proposed new internal geometries. The updated design increased the effective load-carrying capability and improved rigidity, eliminating structural collapse in subsequent tests.
Quantitatively, the customer reported a reduction of field failure incidents by over 80% after adopting the revised design, while maintenance-related downtime dropped by approximately 25%. Although this case involved a water pump bearing rather than a ZARN ball screw support or NKIA combined bearing, the same methodology—load recalculation, curvature optimization, and structural refinement—applies to combined axial/radial designs sourced from an NKIA5903 NKIA5904 combined bearing factory like Taiyada bearing.
Customer Feedback from a Precision Machinery Manufacturer
A precision machinery company specializing in mid-size CNC milling centers partnered with Taiyada bearing to evaluate the use of ZARN axial/radial bearings and NKIA 5902 combined bearings for their ball screw supports. The engineering manager noted that their previous supplier provided catalog-based bearings without detailed analysis of preload and fit tolerances, which led to frequent noise issues and occasional seizure after prolonged high-load operation.
With Taiyada bearing’s involvement, the company redefined its bearing housing tolerances, adjusted the interference fit on the screw journal, and refined the preload strategy. The manager later reported that after six months of production, customer complaints related to axial noise and support bearing failure fell by around 40%, while production efficiency improved by roughly 20% due to reduced rework and fewer line interruptions. This feedback highlighted the value of engaging a China NKIA 5902 metric series bearing supplier capable of both supplying hardware and contributing to engineering decisions.
Cost and Lifecycle Impacts
In both automotive and industrial cases, improved bearing design and consistent batch quality translated into measurable economic impacts. Customers reported cost reductions of up to 30% when considering the total lifecycle: fewer warranty claims, less downtime, and decreased replacement part consumption. At the same time, production efficiency gains of around 25% were achieved in some lines where line stoppages and rework had been frequent. These outcomes underline how optimized combined bearings—whether in ZARN or NKIA 5902/5903/5904 configurations—can influence both operational and financial metrics.
Quality Backbone: IATF 16949, ISO 9001, and 20 Years of Manufacturing
Taiyada bearing’s approach to ball screw support bearings and combined metric series bearings is built upon a quality backbone that includes IATF 16949 and ISO 9001. For automotive-grade components such as water pump bearings and transmission-related needle bearings, IATF 16949 certification confirms that the company’s processes are aligned with OEM and Tier 1 expectations. This framework extends naturally to combined bearings used in industrial automation and CNC machinery.
The ISO 9001 system ensures closed-loop control from raw material inspection to final product testing. With more than 100 sets of testing instruments—including Rockwell hardness testers, universal length measuring devices, and various precision metrology tools—Taiyada bearing maintains consistent quality across batches. This consistency is particularly important for ZARN and NKIA series bearings, where slight deviations in geometry can significantly influence axial precision and preload behavior.
Since its establishment in 2004, Changzhou Taiyada bearing Co.,Ltd has built a track record with no major quality incidents reported by inspection authorities. The company’s recognition as a Provincial Quality Trustworthy Enterprise underlines this history. For buyers who must demonstrate supplier reliability, traceability, and process control, selecting an NKIA5903 NKIA5904 combined bearing factory with such credentials reduces approval time and mitigates supply chain risk.
Production Capacity and Global Market Orientation
With an annual output exceeding 3 million bearing sets and a production value above 30 million RMB, Taiyada bearing combines scale with specialization. Around 40% of its output is exported to Europe, North America, the Middle East, Southeast Asia, and other regions, supported by independent import and export rights. This global orientation helps align the company with international standards and expectations for metric series combined bearings, including NKIA 5902 and ZARN formats.
The internal structure of the company includes more than 100 employees, a dedicated R&D team, and a specialized QC group. This allows for iterative design improvements and rapid response to customer feedback. For ball screw support projects, quick engineering feedback loops help refine preload, fit, and lubrication strategies without long delays, which is often a critical factor in meeting project timelines.
Integration with Existing Product Lines
Taiyada bearing’s portfolio—automotive water pump bearings, needle roller bearings, and track roller bearings—forms a coherent base for combination bearings. Experience in handling high belt tension in water pumps, slender roller layouts in needle bearings, and shock loads in track rollers enables the company to translate lessons learned into NKIA 5902 and ZARN series improvements. This cross-pollination helps ensure that combination bearings address real-world failure modes rather than theoretical ones.
Conclusion: Leveraging Taiyada Bearing for Next-Generation Combined Bearings
In an environment where automation, CNC machining, and high-speed production continue to evolve, the choice of a China NKIA 5902 metric series bearing supplier carries both technical and strategic significance. Taiyada bearing’s combination of needle roller expertise, water pump bearing heritage, and IATF 16949/ISO 9001 quality frameworks offers a practical foundation for ZARN ball screw support bearings and NKIA-type metric combined bearings.
By addressing typical pain points—fit tolerances, load rating mismatches, surface finish quality, and internal clearance control—Taiyada bearing helps customers move from trial-and-error to calculated engineering decisions. Case studies show that when combined bearings are optimized for actual loads and mounting conditions, failure rates can drop and production efficiency can rise. Feedback from industry managers confirms that collaboration on preload, geometry, and lubrication is as important as the bearing hardware itself.
For organizations seeking to align with current trends in compact, high-stiffness ball screw support and combined axial/radial layouts, engaging with a capable NKIA5903 NKIA5904 combined bearing factory such as Taiyada bearing provides a path toward more stable, predictable, and cost-effective operation. The company’s experience with hybrid applications—from textile machinery to heavy-duty mechanical equipment—underscores its ability to adapt combination bearing designs to diverse industries and evolving performance requirements.
Ultimately, the synergy of advanced needle roller technology, robust quality systems, and continuous R&D investment positions Changzhou Taiyada bearing Co.,Ltd as a relevant partner for engineers and procurement teams looking to implement or upgrade NKIA 5902 metric series bearings and ZARN-type ball screw support solutions in their next generation of machines.
