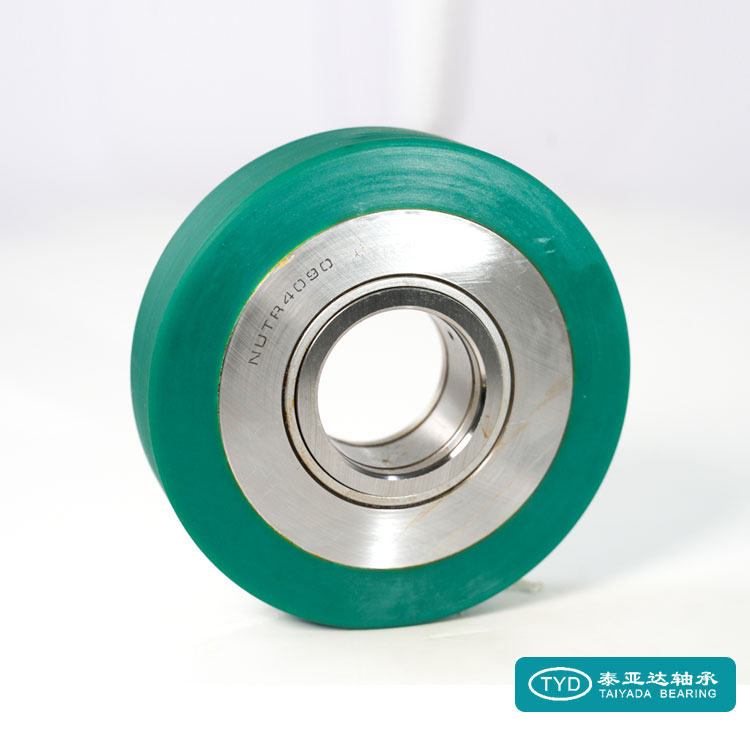

NUTR4090 Ready-to-use heavy-duty support wheel assembly

I. Core Understanding: What is NNTR/NUTR?

Firstly, it is important to understand that NNTR/NUTR is not a simple "bearing", but rather an immediately installable heavy-duty support wheel assembly. Its core value lies in integrating bearings, seals, lubricating grease, and a sturdy bearing housing, specifically designed for medium and low-speed, heavy-load, and impact-prone working conditions.

Main features:

High load-bearing capacity: The internal use of fully filled drum-shaped rollers provides extremely high radial load-bearing capacity and impact resistance.

Self-aligning capability: The outer ring of the bearing is spherical, which can be matched with a spherical bearing housing. It can automatically compensate for installation alignment errors of up to ±2°.

Ready-to-use: The product is pre-installed with a seal and filled with high-quality lubricating grease before leaving the factory. No complex on-site debugging is required.

Sturdy and durable: The bearing seats are usually made of high-strength cast iron.

II. Main Application Scenarios (Where are they used?)

The NNTR/NUTR bearings are specifically designed for use in harsh conditions for guidance and support. Typical applications include:

Transportation equipment (most commonly used): conveyor belts, chain plate conveyors, supporting rollers of roller lines.

Agricultural machinery: The drive wheels or tension wheels of equipment such as harvesters and tractors.

Construction machinery: Guidance wheels for equipment such as vibratory rollers and mixing stations.

Factory Automation: Heavy-duty slide rails, handling machines, support and guidance.

III. Installation and Usage Steps and Key Precautions

Correct installation is the foundation for ensuring its long lifespan.

1. Pre-installation Inspection

Verify the model: Ensure that the bearing model is consistent with the design requirements.

Visual inspection: Check if the bearings are damaged during transportation and whether the sealing rings are intact.

2. Installation Preparation

Installation surface requirements: The installation base of the bearing seat must be flat, clean, and have sufficient rigidity. An uneven base will cause the bearing seat to deform, resulting in the bearing getting stuck.

Requirements for Installation: Although the shaft has self-aligning capability, during installation, it is still necessary to ensure the levelness of the shaft and the coaxiality of each bearing seat. Self-aligning is used to compensate for minor errors, rather than to correct major installation mistakes.

3. Install onto the shaft (the most crucial step)

Clean the journal: Thoroughly clean the installation area of the shaft, removing burrs and rust.

Recommended method: Use hydraulic nuts or special sleeves to press the bearing into the correct position on the shaft under a steady pressure.

Do not directly strike: It is strictly prohibited to use a hammer to directly strike the outer ring of the bearing or the bearing housing. This will seriously damage the internal rollers and seals. If striking is necessary, a copper rod should be placed on the inner ring to distribute the force evenly.

4. Fixed bearing housing

Place the bearing housing with the shaft installed on the base, and insert bolts of the appropriate strength grade.

Tighten the bolts in a diagonal sequence to ensure that the bearing seat is evenly in contact with the base surface.

IV. Lubrication Maintenance

Initial State: The bearings are filled with long-lasting lubricating grease upon leaving the factory. Under normal circumstances, they can be used directly.

​Another lubrication method:​​

Most NNTR/NUTR bearings are equipped with lubrication ports and drain holes.

Correct operation: Before injecting the grease, first remove the drain plug, use the grease gun to inject the same type of grease until new grease starts to overflow from the drain hole, and then reinstall the drain plug.

Lubrication cycle: It is determined based on the working environment (temperature, dust, humidity) and the operating time. Generally, it can be referred to in the equipment manual or the regular maintenance schedule.

V. Common Errors and Taboos

Error 1: Direct hammering for installation.

Consequences: Damage to the seal, allowing foreign objects to enter or directly damaging the rolling elements.

Error 2: Experiencing excessive axial force.

Consequence: The NNTR/NUTR design is intended to withstand large radial loads, but its axial load-bearing capacity is very limited. Incorrect usage can lead to failure very quickly.

Error 3: Mixing different types of lubricating grease.

Consequence: Different brands of lubricants may not be compatible, resulting in reduced performance or blockage.

Error Four: Ignoring the drainage hole.

Consequence: If the drain hole is not opened during the injection process, the internal pressure will damage the seal.

VI. Fault Symptoms

​Abnormal Noise: Sharp scraping or crashing sounds, indicating wear or lack of oil.

Turning jamming: Manual rotation is not smooth. This could be due to lubrication failure or internal damage.

Excessive temperature: The bearing seat is overheating, which may be caused by excessive or insufficient lubrication.

Oil leakage: A sign of a failed seal.

Summary: The secrets to successfully using NNTR/NUTR

→ Precise selection → Standard installation → Regular lubrication → Frequent inspection.

As long as you regard it as a precise "functional wheel" assembly and use and maintain it correctly according to the above points, it will demonstrate excellent reliability and an extremely long service life under heavy loads and harsh working conditions.

If you could provide more specific details about the application scenario (such as which machine it is for and what kind of load it can handle), I can offer more targeted suggestions.
