The water pump is responsible for driving the circulation of coolant, ensuring that the engine operates at an ideal temperature of 80-90℃. If the water pump fails, the coolant circulation will be interrupted, directly leading to engine overheating, power loss, and even engine blockage.
The water pump shaft and bearing, as the core transmission component of the water pump, undertake the crucial tasks of supporting the rotation of the impeller and transmitting power. Its reliability directly affects the lifespan of the water pump and the stability of the cooling system.
The failure has a global impact.
The damage of the shaft-connected bearing can cause coolant leakage, abnormal noise, and the stoppage of the water pump impeller, which will further trigger the engine high-temperature alarm 1721. According to statistics, about 30% of water pump failures are caused by the failure of the shaft-connected bearing 712.
II. Integrated Function of Drive Shaft and Bearings
Integrated Structural Design
Unlike traditional split-type bearings (independent bearings + drive shaft), the pump shaft and bearing adopt an integrated design:

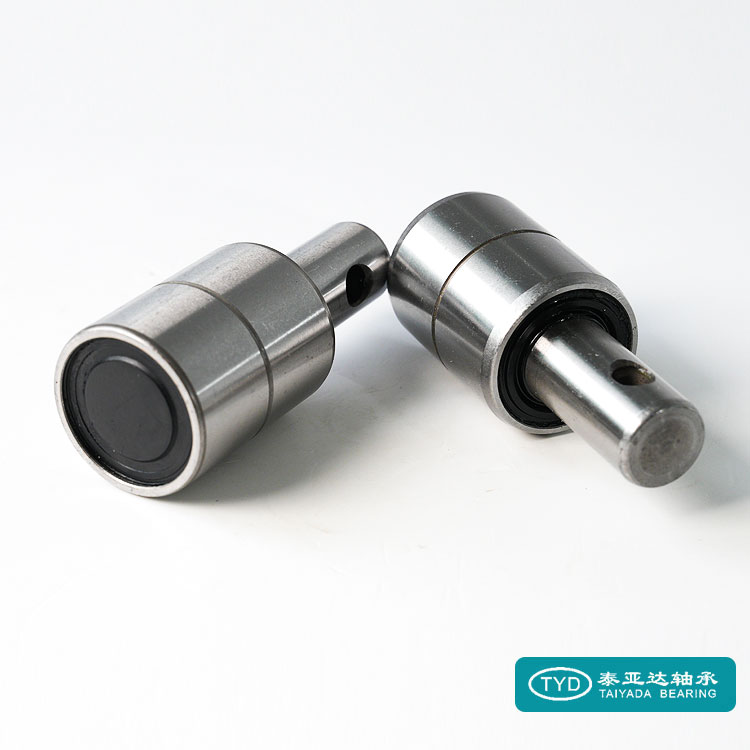

The drive shaft is directly used as the inner ring of the bearing, with the raceway machined on the shaft; the outer ring is an integral structure, sealed on both sides with seals 210. This design significantly simplifies the structure, reduces assembly steps, and enhances the system rigidity 520. Performance advantages
High load capacity: By optimizing the number of rollers (such as increasing the number of steel balls from 10 to 12 as mentioned in the patent) and materials (carburized bearing steel), it can withstand high-speed operation at 6000-9000 r/min and high-temperature and high-pressure conditions of 510;
Compact space adaptation: The radial size is smaller than that of traditional bearings, suitable for the limited space in the engine compartment 916;
Lifelong lubrication: Pre-filled with high-temperature grease (such as 2-3 lithium-based grease) and using radial contact seals to ensure long-term maintenance-free operation 925.
III. Industry Applications and Technological Evolution

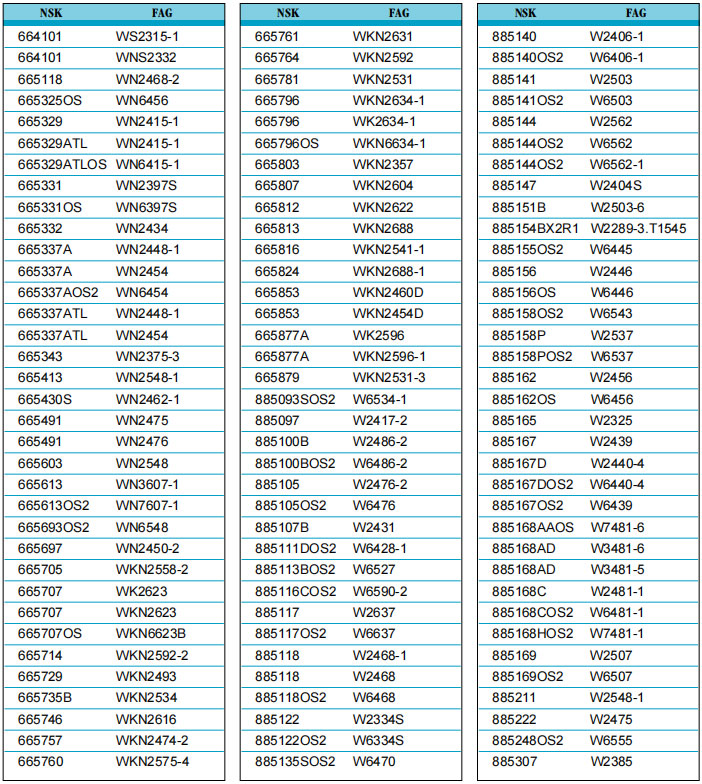

Standard configuration for mainstream car manufacturers: This structure is widely adopted by German (Mercedes-Benz, Audi), Japanese (Toyota) and domestic car models, replacing the traditional double deep groove ball bearing solution 1018;
Technology iteration: For example, patent CN202010482629X increases the size of steel balls (∅5.556→∅6.35) and adds a filtering mechanism, significantly reducing the failure rate 5;
Failure prevention: Optimizing the material of the sealing ring (from nitrile rubber to fluorine rubber) to cope with high-temperature environments above 120℃ 916.
Conclusion
The water pump shaft connection bearing, by integrating the functions of the transmission shaft and the bearing, has become a core guarantee for the efficient operation of the cooling system. Its integrated design, high reliability and adaptability make it an irreplaceable key component in modern automotive engines. Relevant technologies are still continuously upgrading to meet the higher temperature requirements of new energy vehicles 526.
