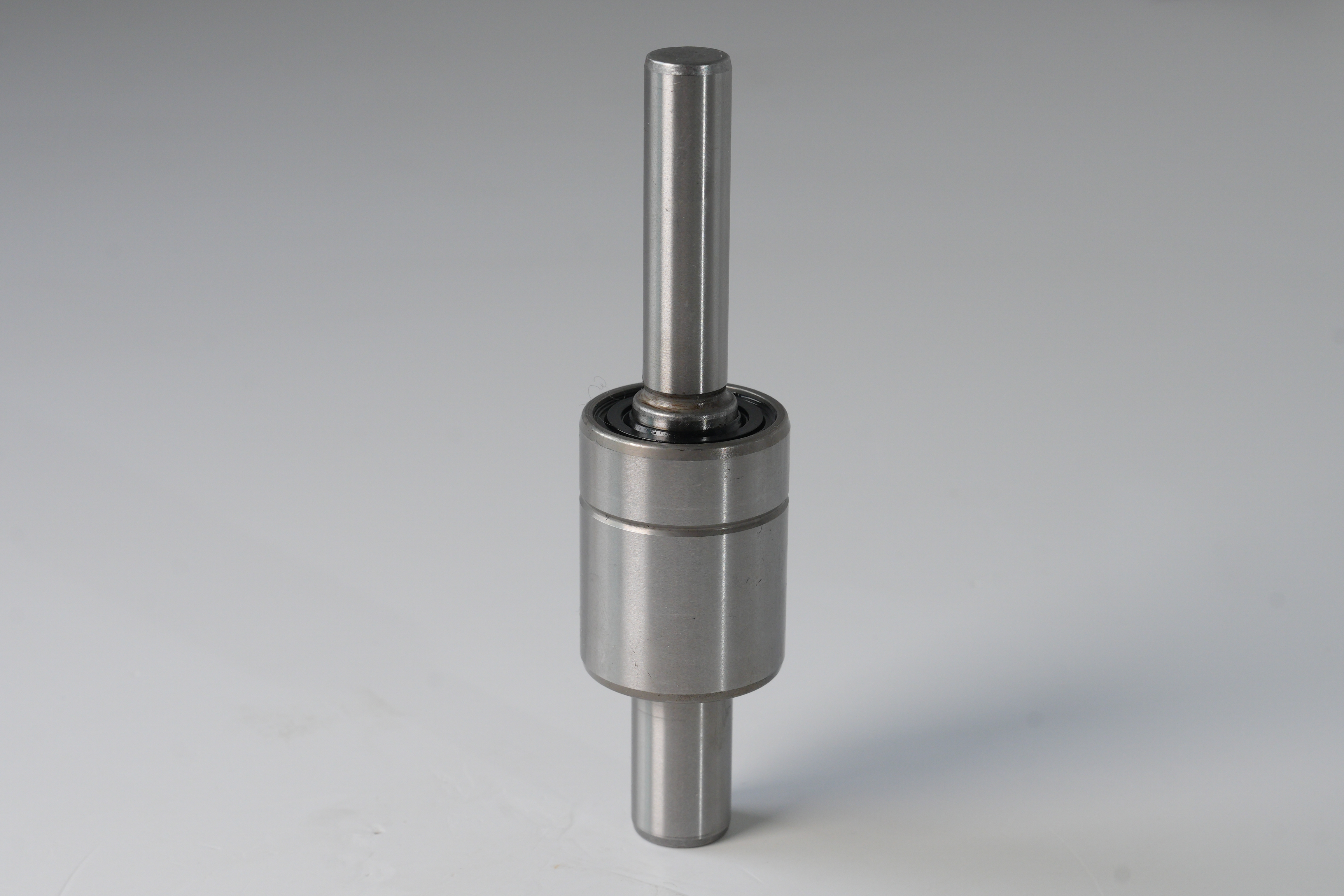

In simple terms, a pump shaft coupling bearing is a "one-piece bearing and shaft" design. It is not the traditional "bearing" that can be installed and disassembled separately, but rather a complete assembly.
Traditional Design: The pump shaft is a separate component. Two independent bearings (usually deep groove ball bearings or ceramic bearings) are pressed onto the pump body, and then the pump shaft passes through the bearings.
Shaft coupling bearing design: The inner ring, rolling elements (balls or needles), cage, and shaft are manufactured and fixed as an inseparable unit. This assembly is directly installed into the pump casing.
II. Core Structure and Characteristics
Integrated Structure:
The shaft and the inner ring of the bearing are usually integrated, or they are permanently fixed through special processes (such as laser welding, interference fit).
The outer ring is a separate component and is pressed into the pump body during installation.
Distinct functions at both ends:
One end (front end): This is the installation surface for mounting the pump impeller (via threads or interference fit), and it is equipped with a water seal (mechanical seal). This is the end that directly contacts the coolant.
The other end (rear end): Usually used for installing pulleys or flanges, and transmitting the power from the engine through the belt.
Optimized lubrication and sealing:
Lubrication: The bearing chamber is filled with long-lasting lubricating grease before leaving the factory. There are high-performance sealing rings on both sides of the bearing to ensure that the lubricating grease does not leak and to prevent external contaminants (especially coolant) from entering.
Sealing system: This is the lifeline of the shaft-mounted bearing water pump. It consists of two seals:
Bearings seal: Protects the lubricating grease inside the bearings.
Water seal (mechanical seal): Located between the impeller and the bearing assembly, it is a crucial component that prevents coolant from leaking into the bearing interior. Once the water seal fails, coolant enters the bearing chamber, causing the lubricating grease to emulsify and fail, and the bearing will be damaged rapidly.
III. Working Principle Analysis
The power is transmitted from the engine through the belt to the belt pulley at the end of the shaft and the bearing, driving the entire shaft and the impeller to rotate. The rotation of the impeller generates centrifugal force, causing the coolant to circulate within the engine cooling system.
The sole function of the bearing section is to support the entire rotor (shaft + impeller) for high-speed and smooth rotation, and to withstand the radial force from the belt and the unbalanced force of the impeller.
IV. Main Advantages
This integrated design offers numerous benefits, especially in the automotive industry where space, cost, and reliability are of utmost importance:
Compact structure, saves space: The integrated design reduces the number of components and shortens the axial dimension.
Simplified assembly, enhanced efficiency: On the automotive assembly line, all the components can simply be pushed into the pump housing, significantly simplifying the assembly process.
High reliability: Due to the fact that these assemblies are pre-lubricated and pre-adjusted at the factory, their quality consistency is much higher than that of traditional bearings assembled on-site.
High cost-effectiveness: Although the cost of a single assembly may be high, it saves assembly time and potential failures, resulting in a lower total cost.
Maintenance-free: The design lifespan is synchronized with that of the pump, and no additional lubricating grease needs to be added throughout the entire life cycle.
V. Disadvantages and Precautions
Irreparability: This is the biggest drawback. Whether it is damage to the bearing itself, leakage of the water seal, or wear of the shaft, the entire shaft along with the bearing assembly must be replaced, resulting in high maintenance costs.
Extremely strict sealing requirements: The reliability of the water seal determines the lifespan of the entire water pump. Impurities and chemicals in the coolant can erode the water seal.
VI. Common Application Scenarios
The most important and typical application: the cooling water pump for automotive engines. Most of the modern household cars on the market have water pumps with shaft-connected bearings.
The cooling systems of other small internal combustion engines.
Some general centrifugal pumps that require compact design.
VII. Key Points for Selection and Replacement
When it is necessary to replace the water pump, you are dealing with an entire "water pump assembly" rather than just the "bearings". When selecting, you should pay attention t
Vehicle model compatibility: Ensure that the new water pump assembly is fully compatible with your vehicle's engine model.
Brand quality: Choose original or well-known brand components. The material, heat treatment, dynamic balance and sealing quality of the shaft and bearings in these products are more reliable.
Check related components: When replacing the water pump, it is usually recommended to also inspect or replace the drive belt and antifreeze coolant at the same time.
Summary
The pump shaft and bearing assembly is a prime example of "integrated design" in the context of modern large-scale production. It integrates the shaft, bearing, seals, and other components into a single, inseparable assembly, aiming for maximum space utilization, assembly efficiency, and reliability. For end users, understanding its core concept is helpful in comprehending why, once a modern pump experiences abnormal bearing noise or leakage, the usual solution is to replace the entire pump assembly rather than attempting to repair or replace the non-existent "independent bearing".
